Can't the cross lock key be inserted?

Detailed reason disassembly, daily maintenance, marking alignment teaching

1. How common are cross locks in Hong Kong?

Cross locks (also known as cross locks) are door locks commonly used in old-style tenement buildings, private building gates, metal gates and many offices in Hong Kong. The cross section of the lock cylinder is cross-shaped, with four rows of beads corresponding to the grooves on the four sides of the key. Although digital locks have become popular in recent years, cross locks are still widely used because of their simplicity and simplicity of installation. The most common question is"The key cannot be inserted" or "It is stuck halfway", many neighbors will be trapped outside because of this.

 Features: The cross lock key is symmetrical on all four sides, but in fact some cross locks have direction restrictions, and there will be "marks" on the key to indicate the correct insertion direction. Many people ignore the markings and insert them randomly, causing the marbles to become misaligned. Over time, the key cannot be inserted and even the lock cylinder is damaged.

2. Cross key mark teaching: insertion/extraction must be aligned with the normal position

Many cross keys have a tinymark (dimple, arrow, color dot or engraved line), this mark means "up" or "toward the specified direction". Before inserting, the mark must be aligned with the reference point on the lock cylinder housing (usually the scale or dot on the lock cylinder), so that it can be inserted and pulled out smoothly. If the mark is misaligned, forced insertion will accelerate wear and tear, or even cause instant jamming.

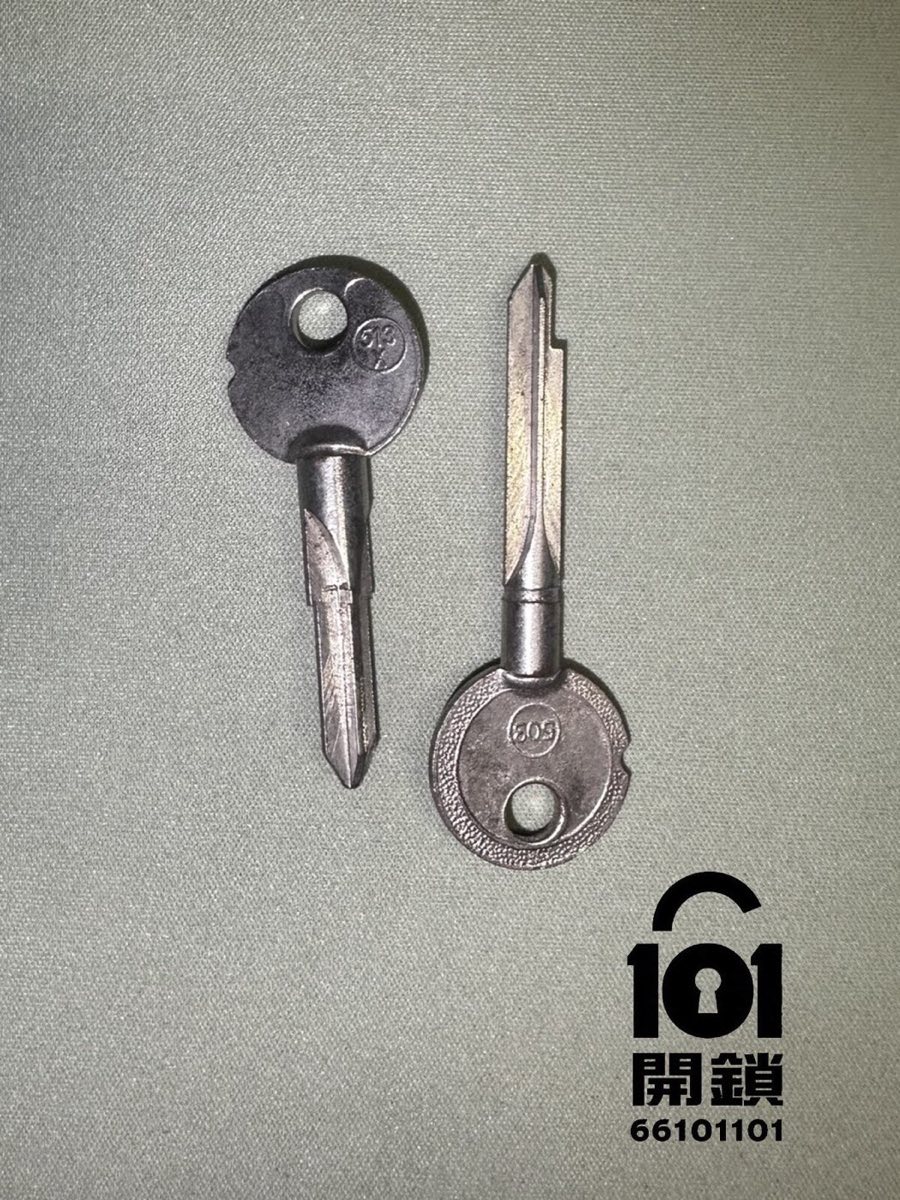

Close-up of the triangular mark on the handle of the cross key

Figure 1: Key mark location
The common bumps/pits (inside the red circle) on cross keys are the marks of the "normal insertion direction".

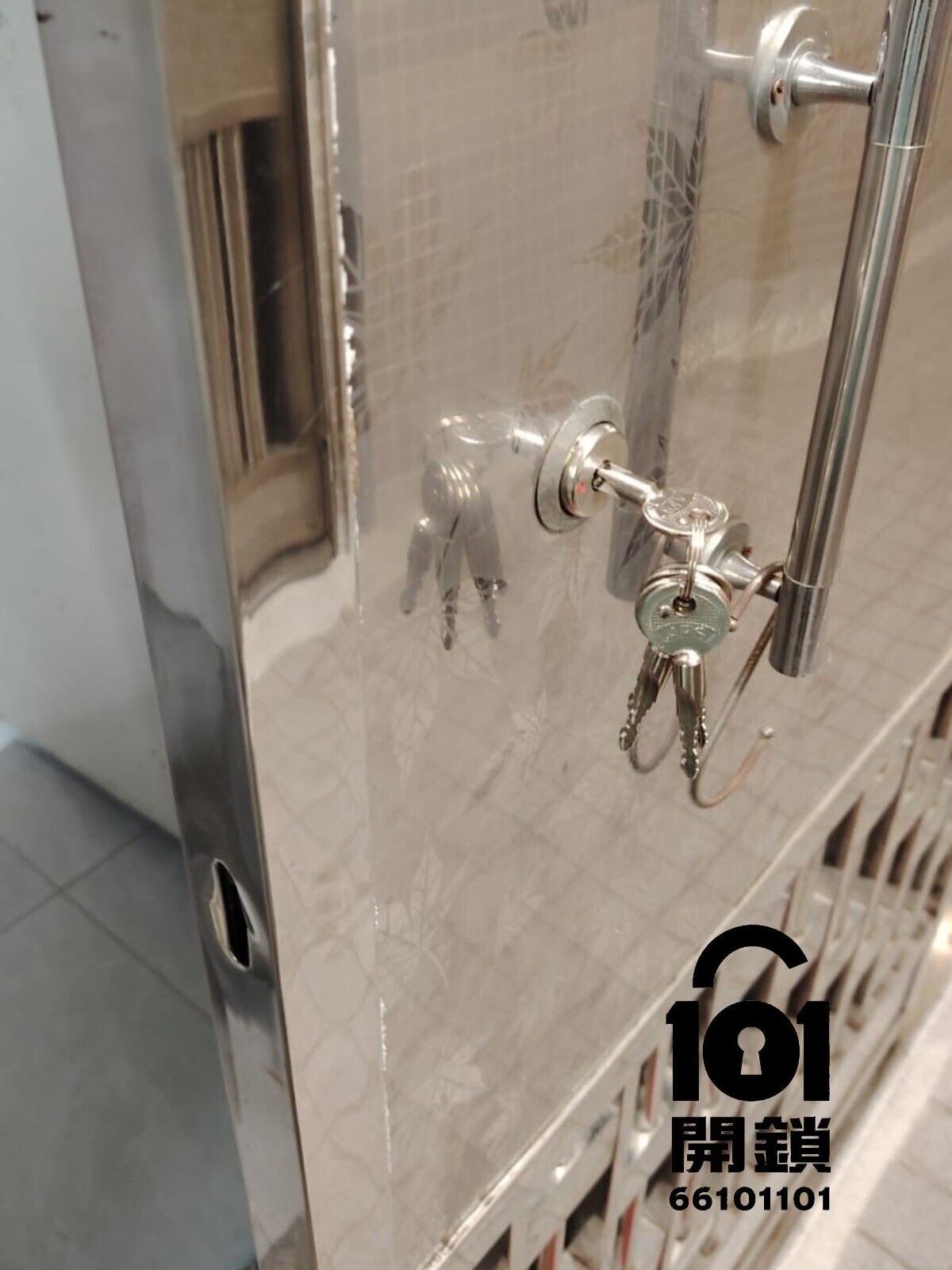

Location mark on the lock cylinder housing

Figure 2: Lock cylinder reference point
The lock cylinder usually has a small dot or engraved line. When inserting the key, align the mark on the key with this reference point.

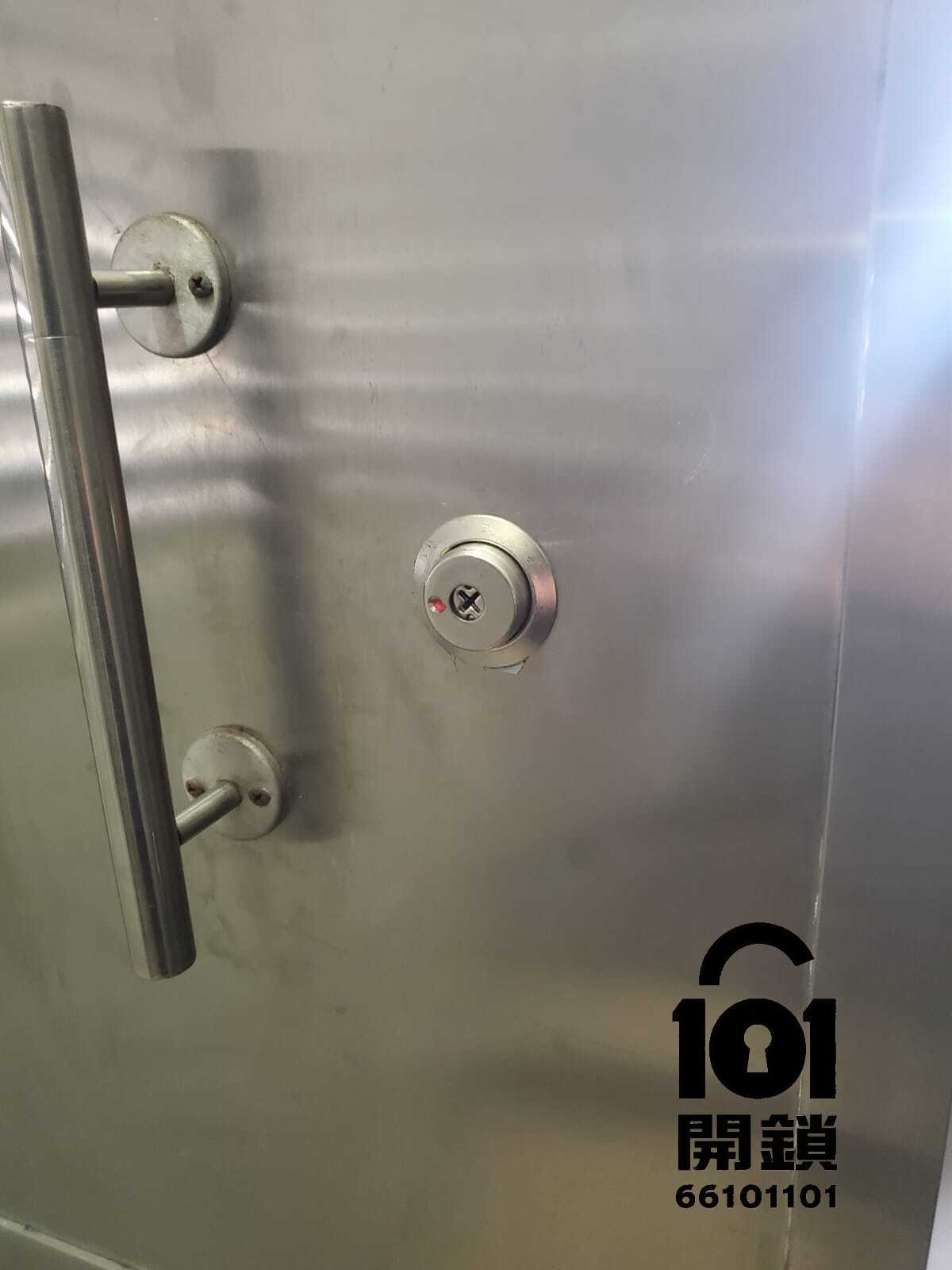

Demonstration of correct alignment and insertion of cross key

Figure 3: Correct insertion method Align the
mark upwards with the reference point of the lock cylinder, push it gently to the bottom, and then twist the key first. Always keep the mark in the same direction when pulling it out.

Important reminder: Regardless of whether the key is inserted or pulled out, the mark should be kept aligned with the reference position of the lock cylinder. If the lock is forcibly inserted or pulled out when the mark is misaligned, the marble inside the lock cylinder will be compressed and deformed, and a "key cannot be inserted" or "key cannot be pulled out" failure will occur soon.

3. The reason why the cross lock key cannot be inserted

Based on the many years of experience of 101 Locksmithing masters, the following are the most common fault phenomena. Check the table below to compare the situation you encounter:

Fault phenomenon	Main reason
The key cannot be inserted at all	There is foreign matter in the keyhole
The key cannot be inserted, only 1-2mm	The position of the cross lock key barrel is incorrect
The key got stuck halfway when it was inserted.	The position of the cross lock key barrel is incorrect
The key can be fully inserted but cannot be twisted	There is a problem with the lock body/structure
The key is so tight after insertion that it is difficult to pull it out.	There is a problem with the key slope
The key is inserted as far as it will go but it cannot rotate smoothly or even breaks.	There is a deviation in the coordination between the lock cylinder and the lock body (the lock cylinder screw is loose) or a foreign object is stuck
I have been using the cross lock for many years, and it is always difficult to insert it smoothly.	Long-term wear and tear, the marble or key wears to the critical point

4. How to prevent the cross key from not being inserted? 6 tips for simple maintenance

 Get used to inserting/unplugging tags
Before each use, confirm that the key mark is aligned with the reference point of the lock cylinder. Developing the correct orientation habit can extend the life of the lock cylinder.

 Avoid using the key to push/throw open the door
Make good use of door handles and avoid using keys to open doors.

Avoid violent insertion of keys
There is obstruction when inserting the key, so do not force it. If resistance is found, pull it out immediately and check.

Avoid matching keys
The cross key has four sides, which naturally increases the difficulty of key matching. Avoid mismatching. Use original keys instead to reduce errors.

 Correctly install the dust cover
A dust-proof cover can be added to the cross lock outside the door to prevent rain and dust from directly entering the lock hole and causing rust or scale accumulation.

Pay attention to key deformation/blurred markings
If the key is bent or the mark is so worn that it cannot be seen clearly, a new key must be obtained immediately. Do not reuse it, otherwise the cross lock may be damaged.
